Short-term Earthquake Prediction Based on Seismic Precursory Electric  Signals Recorded on Ground Surface.









“What today seems impossible, is tomorrow’s reality”

                                                                              Dinos



M 6.2 PRINCE EDWARD ISLANDS REGION 2024-05-31 15:46:10 UTC

Click HERE to see the calculated (on 2023/05/21) expected magnitude
for the specific regional seismogenic area



Fig. 1. EQ Location (colored star, after EMSC).

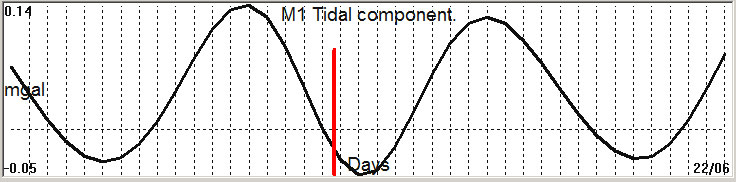

Fig. 2. M1 tidal variation (black line)  v.s time of occurrence (red bar) of the  EQ.

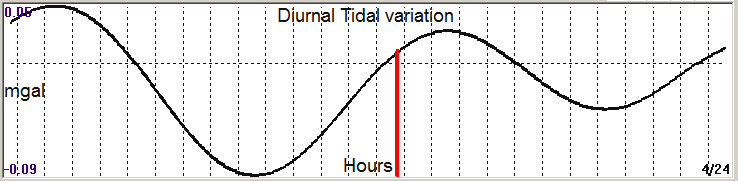

Fig. 3. Diurnal  (K2) tidal variation (black line)  v.s time of occurrence (red bar) of the  EQ.

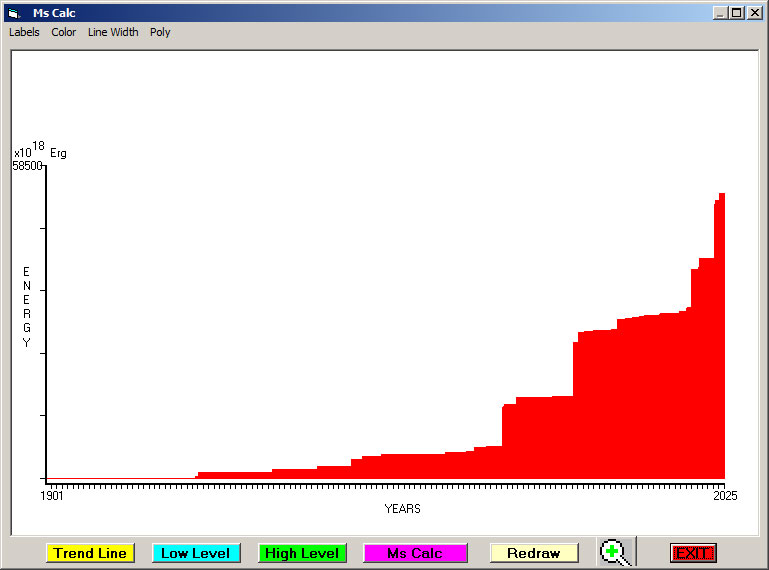

Fig. 4. Cummulative Seismic Energy Release (CSER) since 1901 in 1 month sampling interval.



 Fig. 5. Expected EQ magnitude due to application of the LSEFM  (Lithospheric Seismic Energy Flow Model) on past (since 1984) seismic history of the regional seismogenic area.

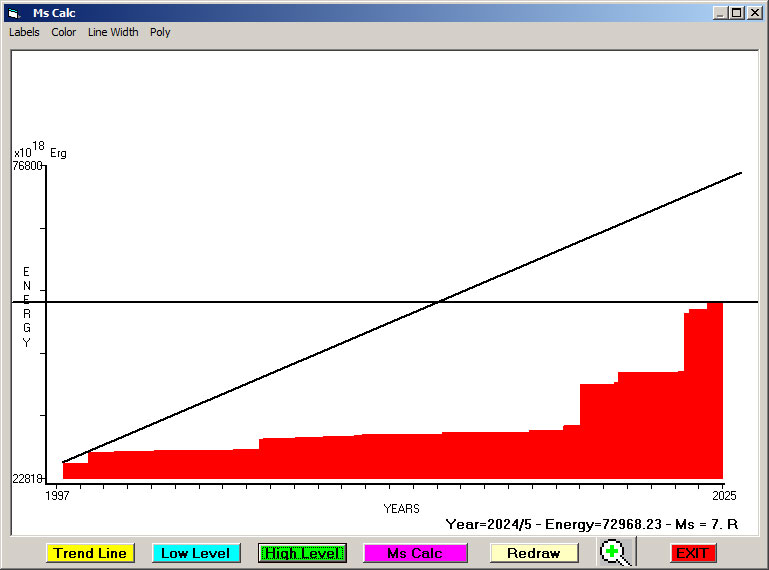

 Fig. 6. Expected EQ magnitude due to application of the LSEFM  (Lithospheric Seismic Energy Flow Model) on past (since 1997) seismic history of the regional seismogenic area.

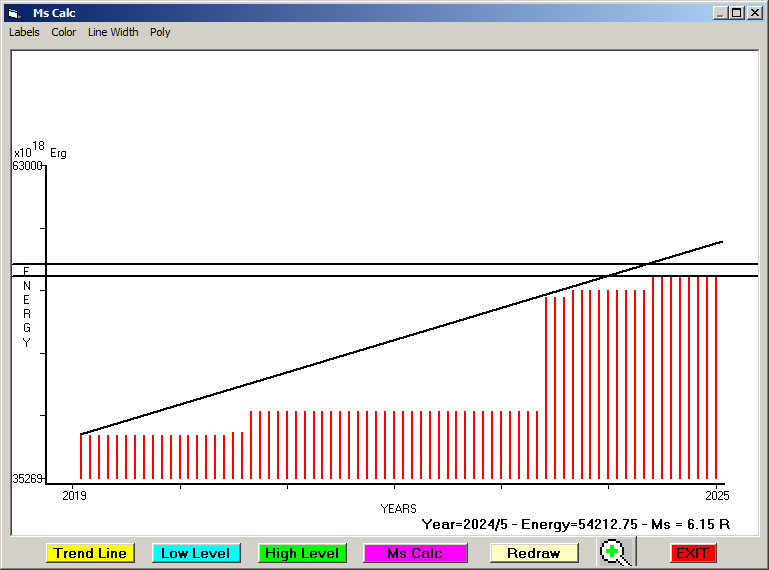

 Fig. 7. Expected EQ magnitude due to application of the LSEFM  (Lithospheric Seismic Energy Flow Model) on past (since 2019) seismic history of the regional seismogenic area.

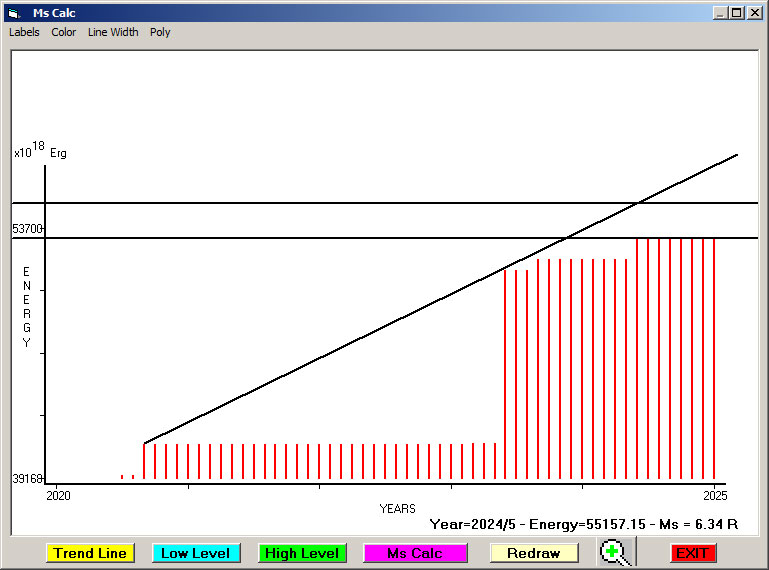

 Fig. 8. Expected EQ magnitude due to application of the LSEFM  (Lithospheric Seismic Energy Flow Model) on past (since 2020) seismic history of the regional seismogenic area.

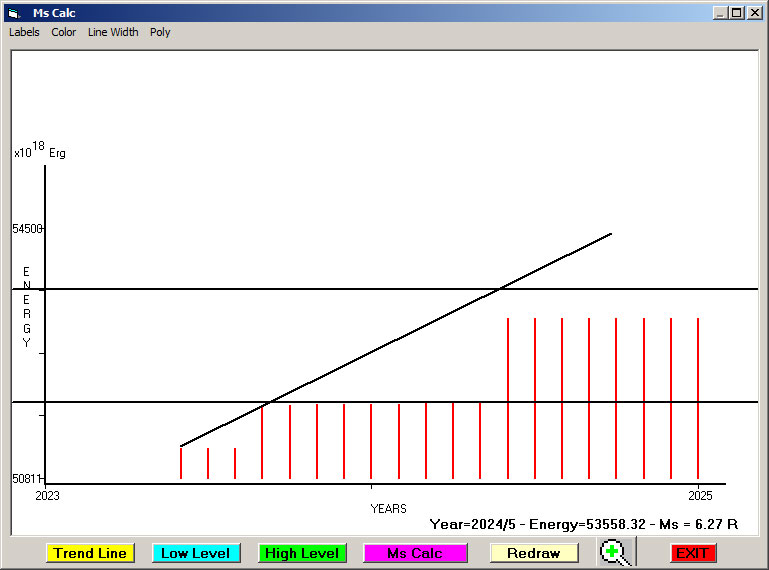

 Fig. 9. Expected EQ magnitude due to application of the LSEFM  (Lithospheric Seismic Energy Flow Model) on past (since 2023) seismic history of the regional seismogenic area.
